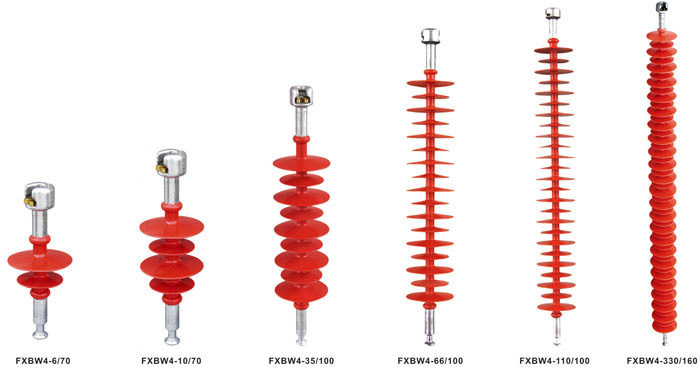

FXBW composite rod-shaped suspension insulator
Key words：
Glass insulator
Classification：
Product Details
The FXBW4 series high-voltage line rod-type suspension composite insulator is suitable for polluted areas, using a one-time overall molding process of silicone rubber under high temperature and high pressure, combined with a two-stage vulcanization process monitored by a computer, which has good anti-pollution performance, especially when used in heavily polluted areas. It has high tensile strength and is convenient for installation and use. The connection structure type specifies the ball-and-socket connection as the basic type.
FXBW4 rod-type suspension insulator model parameters
| Composite insulator Model |
Rated voltage kV |
Rated mechanical load kN |
Structural height mm |
Insulation distance mm |
Minimum nominal creepage distance mm |
Lightning impulse withstand voltage (peak) kV |
1min power frequency withstand voltage (effective value) kV |
| FXBW4-10/70 |
10 |
70 |
380 |
200 |
480 |
95 |
45 |
| FXBW4-10/100 |
10 |
100 |
420 |
200 |
480 |
95 |
45 |
| FXBW4-20/70 |
20 |
70 |
460 |
280 |
744 |
125 |
65 |
| FXBW4-20/100 |
20 |
100 |
500 |
280 |
744 |
125 |
65 |
| FXBW4-35/70 |
35 |
70 |
640 |
450 |
1200 |
230 |
95 |
| FXBW4-35/100 |
35 |
100 |
680 |
450 |
1200 |
230 |
95 |
| FXBW4-66/70 |
66 |
70 |
900 |
720 |
2250 |
410 |
185 |
| FXBW4-66/100 |
66 |
100 |
940 |
720 |
2250 |
410 |
185 |
| FXBW4-110/70 |
110 |
70 |
1200 |
1000 |
3150 |
550 |
230 |
| FXBW4-110/100 |
110 |
100 |
1240 |
1000 |
3150 |
550 |
230 |
| FXBW4-110/120 |
110 |
120 |
1240 |
1000 |
3150 |
550 |
230 |
| FXBW4-220/100 |
220 |
100 |
2210 |
1960 |
6300 |
1000 |
395 |
| FXBW4-220/160 |
220 |
160 |
2240 |
1960 |
5900 |
1000 |
395 |
| FXBW4-330/160 |
330 |
160 |
2990 |
2700 |
8300 |
1425 |
570 |
| FXBW4-500/160 |
500 |
160 |
4450 |
4150 |
12900 |
2250 |
740 |
